380V 3pH 50Hz Unit-Spb05kl Air Cooled Condenser for Model 4Des-5y

Ask Lasest Price
Brand Name :	RFJ
Model Number :	Spb03kl
Certification :	CC
Price :	discussed
Payment Terms :	T/T, Western Union
Supply Ability :	10000pieces
Delivery Time :	3-7 days

Add to Cart

Product Details
Company Profile

380V 3pH 50Hz Unit-Spb05kl Air Cooled Condenser for Model 4Des-5y

Unit-Spb05kl Air-Cooled Compressor Condensing for Model 4Des-5y

Product Description
Fan speed regulator:
Adjust condensing fan according to condensing temp.
Operation data display function:
To check important data such as current of compressor, and condensing temp.
System alarm function:
When fault effects, the system will make alarm sound to remind user
Independent Operation board:
1. For temp. showing, defrosting controlling, operation system data checking and temp. alarming
2. Can be installed anywhere available.

2.Picture

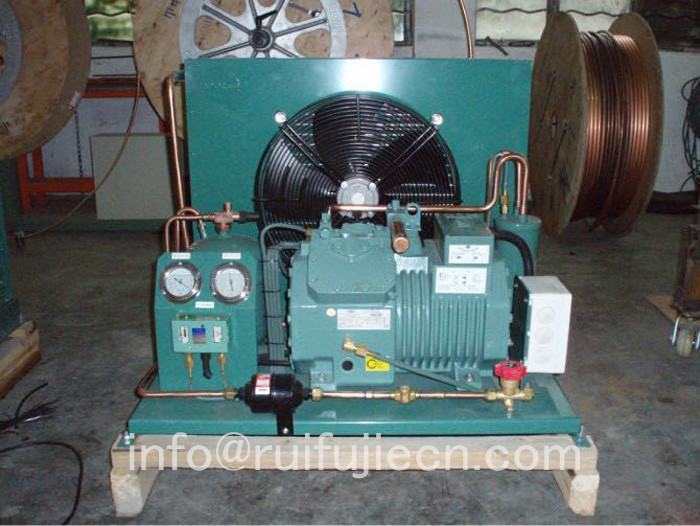

380V 3pH 50Hz Unit-Spb05kl Air Cooled Condenser for Model 4Des-5y

380V 3pH 50Hz Unit-Spb05kl Air Cooled Condenser for Model 4Des-5y

3.Technical

Technical Data Of Air Cooled Compressor Condensing Unit
Technical Data For Air-cooled Compressor Condensing Unit with medium & LowTemperature
Condensing Unit model	Compressor Model	Power Supply	refrigerating capacity(KW)	input power(KW)
Condensing Unit model	Compressor Model	Power Supply	refrigerating capacity(KW)	input power(KW)
SPB03KL	2CES-3Y	380V/3PH/50HZ	4.77	2.91
SPB04KL	4EES-4Y		6.49	4.05
SPB05KL	4DES-5Y		7.55	4.79
SPB06KL	4CES-6Y		9.28	5.66
SPB09KL	4TES-9Y		11.41	6.74
SPB12KL	4PES-12Y		12.64	7.34
SPB14KL	4NES-14Y		15.50	9.11
SPB18KL	4HE-18Y		21.90	12.67
SPB23KL	4GE-23Y		25.80	15.06
SPB28KL	6HE-28Y		32.30	18.68
SPB34KL	6GE-34Y		38.80	22.90
SPB44KL	6FE-44Y		46.20	27.50

4.FAQ

* Why we choose such big compressor horsepower?

Fresh food has a lot of heat and need the big compressor horsepower to cool down within 4-6 hours.

* Why does the blast cold room need to use the vertical air cooler?

The vertical air cooler have big fin spacing, big air flow and very easy to install.

* Can the blast freezer cooling time be shorter?

4-6 hours is fast enough and very economical. 2-3 hours will need even bigger horsepower compressor and more expensive.
