Hermetic Middle Low Temperature Refrigeration Condensing Units R410 4PES-15Y

Ask Lasest Price
Brand Name :	RFJ Brand
Model Number :	4PES-15Y
Certification :	CE, ISO
Price :	discussed
Payment Terms :	T/T, Western Union, MoneyGram
Delivery Time :	15-20 Days

Add to Cart

Product Details
Company Profile

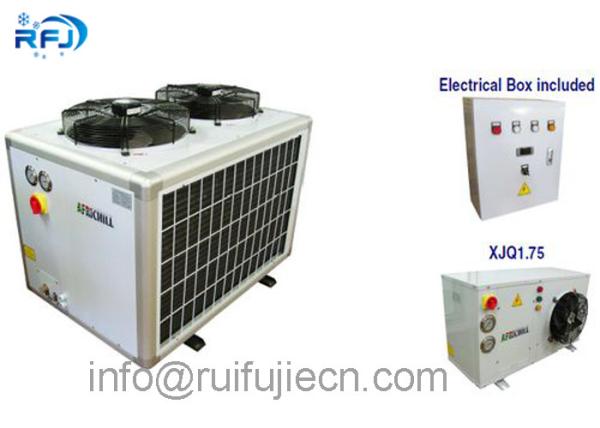

Hermetic Middle Low Temperature Refrigeration Condensing Units R410 4PES-15Y

Hermetic middle Low temperature condenser unit R410 4PES-15Y

Specifications

1.condensing unit
2. compressor,world famous
3.easy to install
4.automatic control
5.ISO9001:2008

condensing unit Features:

1, Compact structure, strong and durable

2, Uses high efficiency air-cooled condenser and realizes high heat exchange; Low power consumption

3, Uses R22, R134A, R404A and R507A as refrigerant

4, Used in medium, low and super low working condition

5, Widely used in foods, chemical, pharmaceutical, display cases, supermarket and industrial refrigeration

6, Easy operation: Design of unit almost considers installation of users, site installation only needs simple works and machine can be put in operation

7, Engineering practice conditions, design and assemble all types air-cooled condensing unit

8, Warranty period: 1 year

9, , Bock, Copeland, Daikin and SANYO brand names are available

10, Customized specifications are accepted

Components:

Compresor, crankcase, oil pressure diffrential, air-cooled condenser, refrigerant receiver, dryer filter, gauge panel,pressure controller.electrical box.

Hermetic Middle Low Temperature Refrigeration Condensing Units R410 4PES-15Y


Side Discharge Compressor Condensing Unit (Ⅶ Type)
Product Description: 1.condensing unit was assembled completely,installation is not constraint by site,a little space occupation. 2.original compressor,inner of condensing unit with the perfect protection system. 3.on the design of side discharge,and condenser and compressor separate to increase the speed of heat transfer and efficiency maximum. 4.with external rotor motor,low noise,low power,large air volume.
Technical Parameters
performance Modle		RFJ080H(VII)	RFJ100H(VII)
Norminal refrigerating capacity (KW)		13.0	16.5
area(㎡)		70	85
Motor power (W)		2*180W	2*250W
Dia of fan (mm)		Φ400	Φ450
Number of electric motors (a)		2	2
Air Voume (M3/H)		4500x2	5000x2
dimension(mm)	L(mm)	1700	1800
	w(mm)	700	750
	850	940
installation size(mm)	a(mm)	1300	1400
installation size(mm)	b(mm)	660	710



performance Modle		RFJ120H(VII)	RFJ150H(VII)	RFJ200H(VII)
Norminal refrigerating capacity (KW)		21	25	29
area(㎡)		105	130	130
Motor power (W)		2*250W	2*450W	2*600W
Dia of fan (mm)		Φ450	Φ500	Φ550
Number of electric motors (a)		2	2	2
Air Voume (M3/H)		5000x2	7000x2	8500x2
dimension(mm)	L(mm)	1900	2000	2200
	w(mm)	800	870	870
	H(mm)	1040	1150	1150
	H(mm)	1040	1150	1150
installation size(mm)	a(mm)	1500	1600	1800
installation size(mm)	b(mm)	760	830	830

Note:1.above datas are on the base of condensing temperature is 40℃ ,evaporation temperature is -18℃ , 2.reserve the right of design modified without prior inform.
