Model Spb50km Freezer Condensing Unit , Blast Freezer Unit

Ask Lasest Price
Brand Name :	RFJ
Model Number :	SPB07WM
Certification :	CC
Price :	discussed
Payment Terms :	T/T, Western Union
Supply Ability :	10000pieces
Delivery Time :	3-7 days

Add to Cart

Product Details
Company Profile

Model Spb50km Freezer Condensing Unit , Blast Freezer Unit

Model SPB50KM Air Cooled Compressor Condensing

1.Product Description
Multi protections:
Phase protection, phase lack, over current, constantly starts of compressor, discharge temp.
Fan speed regulator:
Adjust condensing fan according to condensing temp.
Operation data display function:
To check important data such as current of compressor, and condensing temp.
System alarm function:
When fault effects, the system will make alarm sound to remind user

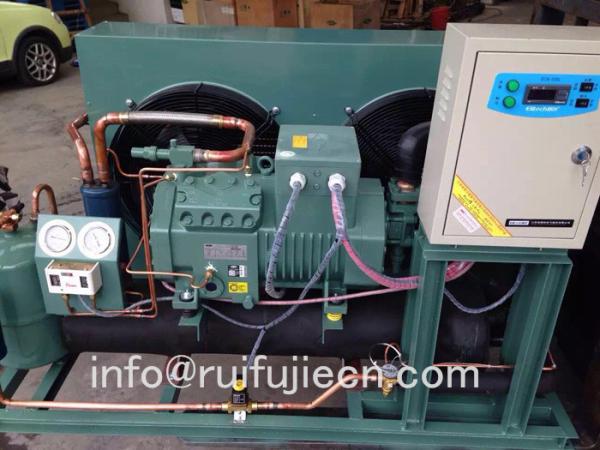

2.Picture

Model Spb50km Freezer Condensing Unit , Blast Freezer Unit

3.Technical

Technical Data Of Air-cooled Compressor Condensing Unit with medium & High Temperature
Condensing Unit model	Compressor Model	Power Supply	refrigerating capacity(KW)	input power (KW)	Air cooled Condenser				Specification of connecting tube
					Model	Total	Dia of fan (mm)	motor power (W)	Return gas (mm)	Out let (mm)
SPB20KM	4NES-20Y	380V 3PH 50HZ	32.50	12.89	LH155	14000	500	2*550	28	16
SPB25KM	4HE-25Y		43.00	17.04	LH180	14000	500	2*550	35	16
SPB30KM	4GE-30Y		49.30	19.70	LH240	28000	500	4*550	35	22
SPB35KM	6HE-35Y		63.20	25.40	FNV300	33000	600	3*780	42	22
SPB40KM	6GE-40Y		71.90	29.40	FNV350	33000	600	3*780	54	22
SPB50KM	6FE-50Y		87.60	36.40	FNV420	44000	600	4*780	54	22

Note:Nominal refrigerating capacity and power input are based on conditions of ambient temperature 32ºC,evaporating temperature -7ºC and refrigerant R404A.

4.FAQ

* Why we choose such big compressor horsepower?

Fresh food has a lot of heat and need the big compressor horsepower to cool down within 4-6 hours.

* Why the temperature is so low?

Fresh food need to reach -20C within 4-6 hours so that need -35C or -40C cold room temperature.

* Why does the blast cold room need to use the vertical air cooler?

The vertical air cooler have big fin spacing, big air flow and very easy to install.

* Can the blast freezer cooling time be shorter?

4-6 hours is fast enough and very economical. 2-3 hours will need even bigger horsepower compressor and more expensive .
