Air Cooled Compressor Condensing Unit SPB07WM for model 4DES-7Y 4DC-7.2Y

Ask Lasest Price
Brand Name :	RFJ
Model Number :	SPB07WM
Certification :	CC
Price :	discussed
Payment Terms :	T/T, Western Union
Supply Ability :	10000pieces
Delivery Time :	3-7 days

Add to Cart

Product Details
Company Profile

Air Cooled Compressor Condensing Unit SPB07WM for model 4DES-7Y 4DC-7.2Y

Air Cooled Compressor Condensing Unit-SPB07WM for model 4DES-7Y

Product Description
Fan speed regulator:
Adjust condensing fan according to condensing temp.
Operation data display function:
To check important data such as current of compressor, and condensing temp.
System alarm function:
When fault effects, the system will make alarm sound to remind user
Independent Operation board:
1. For temp. showing, defrosting controlling, operation system data checking and temp. alarming
2. Can be installed anywhere available.

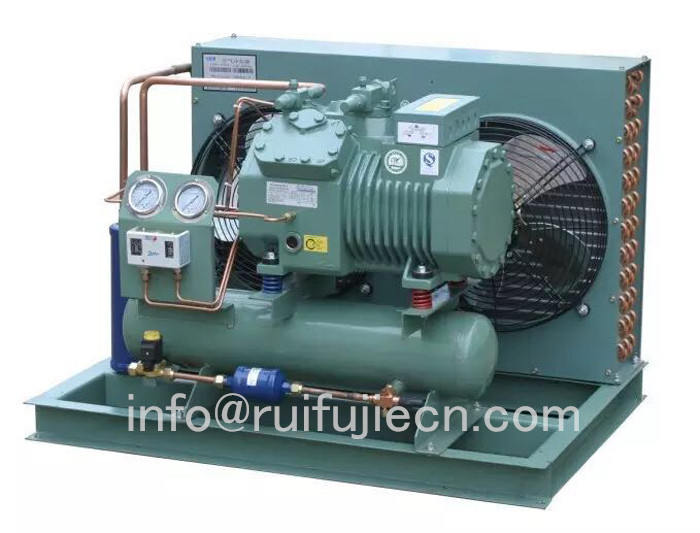

2.Picture

Air Cooled Compressor Condensing Unit SPB07WM for model 4DES-7Y 4DC-7.2Y

3.Technical

Condensing Unit model	Compressor Model	Power Supply	refrigerating capacity(KW)	input power (KW)	Air cooled Condenser
					Model	Total(m³/h)	Dia of fan (mm)	motor power(W)
SPB03KM	2DES-3Y	380V 3PH 50HZ	7.68	3.21	FHN28	4400	350	2*200
SPB04KM	2CES-4Y		9.50	3.95	FHN37.5	4400	350	2*200
SPB05KM	4FES-5Y		10.28	4.27	FHN45	6000	400	2*300
SPB06KM	4EES-6Y		12.89	5.39	FHN55	6000	400	2*300
SPB07KM	4DES-7Y		15.61	6.44	FHN71	8800	350	4*200
SPB09KM	4CES-9Y		18.91	7.89	FHN80	12000	400	4*300
SPB10KM	4VES-10Y		19.61	7.74	FHN92	12000	400	4*300
SPB12KM	4TES-12Y		23.80	9.53	FHN100	12000	400	4*300
SPB15KM	4PES-15Y		27.00	10.78	FHN131	20000	450	4*370

4.FAQ

* Why we choose such big compressor horsepower?

Fresh food has a lot of heat and need the big compressor horsepower to cool down within 4-6 hours.

* Why the temperature is so low?

Fresh food need to reach -20C within 4-6 hours so that need -35C or -40C cold room temperature.

* Why does the blast cold room need to use the vertical air cooler?

The vertical air cooler have big fin spacing, big air flow and very easy to install.

* Can the blast freezer cooling time be shorter?

4-6 hours is fast enough and very economical. 2-3 hours will need even bigger horsepower compressor and more expensive.
