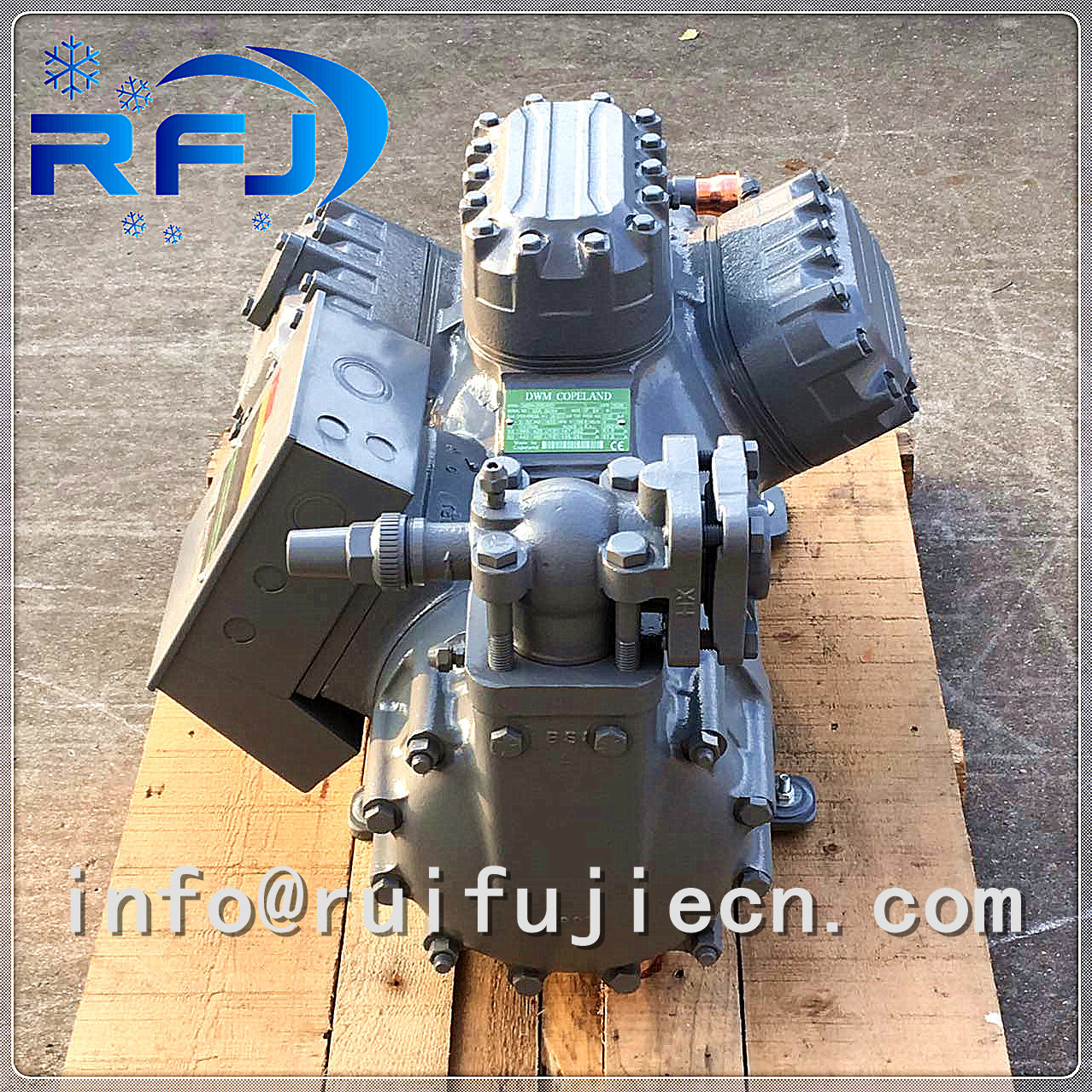

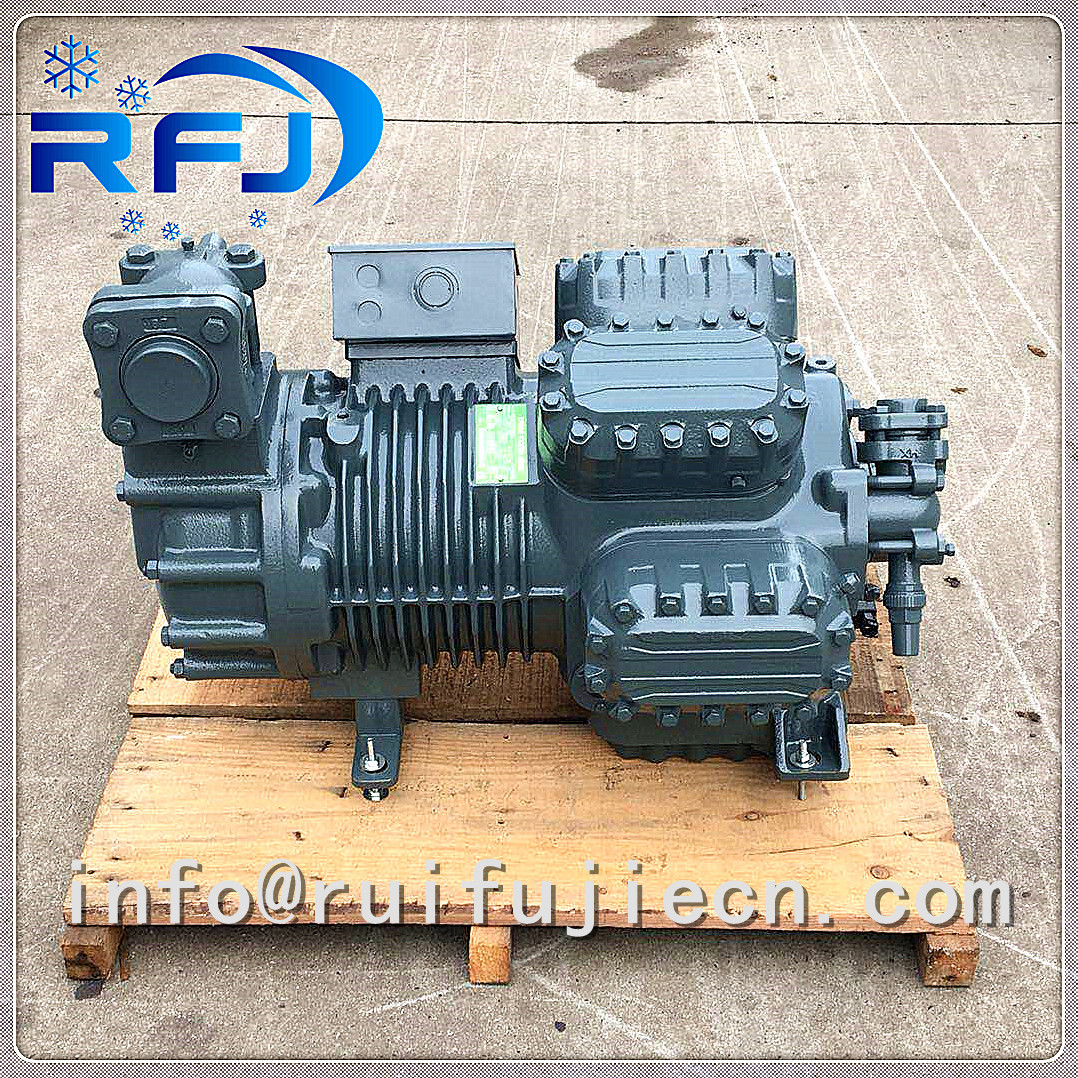

Copeland compressor used D6DL-2700DC copeland air conditioner parts Used in freezer Room

Ask Lasest Price
Brand Name :	Copeland
Model Number :	D6DL-2700DC
Certification :	CE,SGS
Price :	discussed
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	50000 PIECES/YEAR
Delivery Time :	10-12 DAYS

Add to Cart

Product Details
Company Profile

Copeland compressor used D6DL-2700DC copeland air conditioner parts Used in freezer Room

Copeland compressor used D6DL-2700 copeland air conditioner parts Used in freezer Room

Packaging & Delivery

Packaging Details

By Sea:Export wooden package,with refrigerant oil
By Air :Full-sealed wooden package, without refrigerant oil.

Delivery Time

3-5days

Semi-hermetic DWM Copeland Compressor all models
1,R-22,R134A,R407C,R404A/R507
2,from 5HP to 80HP
3,low price & high quality

Type: Semi-hermetic piston compressors

Producer: Copeland

Series: DISCUS

Model: D6DL-2700 DC

Technical data


Cylinder count:	6
Displacement [m³/h]:	106
Weight [kg]:	258
Oil charge [dm³]:	4,3
Max. operating current [A]:	37,1
Locked rotor current [A]:	192
Power supply [V/~/Hz]:	380-420V/3/50Hz

Connections


	milimeters	inches
Suction line:		2 1/8"
Discharge line:		1 3/8"

Standard equipment

oil pump
oil sight glass
Rotalock valves
thermal protections

Optional equipment

additional header cooling
oil pressure switch
crankcase heater
unload starting
capacity control

Application

high, medium and low temperatures
(R22 from 12,5 ºC to -50 ºC)
(R404A/R507 from 7 ºC to -50 ºC)
(R134a from 12,5 ºC to -20 ºC)
(R407A from 7 ºC to -45 ºC)

Capacity : R22

Cooling capacity [kW]

t_c t_e	-50	-45	-40	-35	-30	-25	-20
25	7.21	10.19	13.99	18.64	24.14	30.54	37.85
30	6.46	9.33	12.99	17.46	22.76	28.92	35.97
35	5.69	8.44	11.95	16.24	21.34	27.26	34.05
40	-	7.51	10.87	14.98	19.87	25.55	32.07
45	-	6.52	9.73	13.66	18.34	23.79	30.03
50	-	-	8.54	12.29	16.75	21.96	27.93
55	-	-	7.29	10.85	15.10	20.06	25.76

Power input [kW]

t_c t_e	-50	-45	-40	-35	-30	-25	-20
25	6.83	8.10	9.40	10.66	11.83	12.87	13.72
30	6.72	8.17	9.66	11.13	12.53	13.80	14.89
35	6.52	8.16	9.85	11.52	13.14	14.65	15.99
40	-	8.04	9.93	11.82	13.66	15.41	17.00
45	-	7.81	9.90	12.01	14.08	16.06	17.91
50	-	-	9.74	12.07	14.37	16.60	18.70
55	-	-	9.44	11.99	14.53	17.01	19.37

Current [A]

t_c t_e	-50	-45	-40	-35	-30	-25	-20
25	18.68	19.91	21.32	22.81	24.27	25.59	26.68
30	18.58	19.99	21.62	23.37	25.13	26.81	28.29
35	18.40	19.99	21.84	23.85	25.92	27.95	29.82
40	-	19.87	21.95	24.23	26.61	28.99	31.26
45	-	19.62	21.92	24.47	27.17	29.91	32.58
50	-	-	21.74	24.56	27.57	30.67	33.74
55	-	-	21.37	24.46	27.80	31.25	34.74

Mass flow [kg/s]

t_c t_e	-50	-45	-40	-35	-30	-25	-20
25	131.29	186.90	257.16	342.96	445.18	564.70	702.42
30	121.93	176.91	246.58	331.84	433.57	552.67	690.01
35	111.30	165.64	234.73	319.45	420.70	539.36	676.31
40	-	152.76	221.26	305.45	406.21	524.44	661.01
45	-	137.93	205.85	289.50	389.79	507.58	643.77
50	-	-	188.16	271.28	371.08	488.44	624.25
55	-	-	167.85	250.44	349.76	466.69	602.12

C.O.P. [W/W]

t_c t_e	-50	-45	-40	-35	-30	-25	-20
25	1.06	1.26	1.49	1.75	2.04	2.37	2.76
30	0.96	1.14	1.34	1.57	1.82	2.10	2.42
35	0.87	1.03	1.21	1.41	1.62	1.86	2.13
40	-	0.93	1.09	1.27	1.45	1.66	1.89
45	-	0.84	0.98	1.14	1.30	1.48	1.68
50	-	-	0.88	1.02	1.17	1.32	1.49
55	-	-	0.77	0.90	1.04	1.18	1.33
