D6SF-200X Semi Hermetic Refrigeration Compressor R407 DWN Copeland For Big Cold Room

Ask Lasest Price
Brand Name :	Copeland
Model Number :	D6SF-200X
Certification :	CE,SGS
Price :	discussed
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	500000.00 pcs/year
Delivery Time :	10-12 days

Add to Cart

Product Details
Company Profile

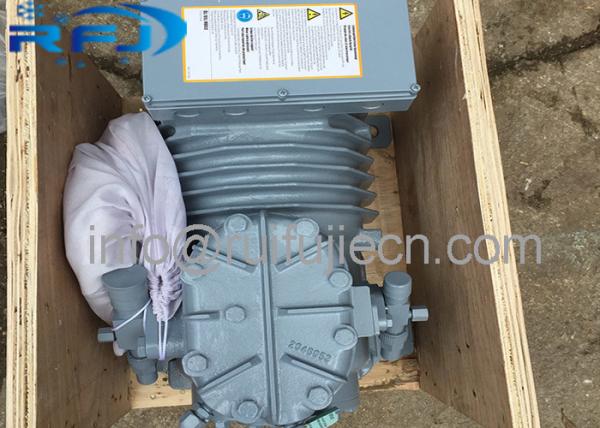

D6SF-200X Semi Hermetic Refrigeration Compressor R407 DWN Copeland For Big Cold Room

D6SF-200X 20 Horse Power R407 DWN Copeland For Big Cold Room with best Price

Cooling capacity [kW]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	34.69	43.57	53.96	66.11	80.25	96.60	115.41	136.89
35	32.39	40.98	50.98	62.60	76.10	91.69	109.62	130.11
40	30.06	38.36	47.94	59.03	71.88	86.70	103.74	123.22
45	-	35.69	44.85	55.40	67.59	81.63	97.77	116.23
50	-	33.01	41.73	51.73	63.25	76.50	91.73	109.17
55	-	-	38.59	48.03	58.86	71.31	85.63	102.02
60	-	-	35.43	44.29	54.44	66.08	79.47	94.82

Power input [kW]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	14.00	15.33	16.54	17.57	18.35	18.82	18.93	18.62
35	14.83	16.35	17.78	19.05	20.10	20.88	21.33	21.39
40	15.63	17.33	18.96	20.46	21.78	22.86	23.63	24.04
45	-	18.25	20.08	21.81	23.38	24.74	25.83	26.58
50	-	19.13	21.14	23.08	24.90	26.54	27.93	29.02
55	-	-	22.15	24.29	26.34	28.24	29.92	31.33
60	-	-	23.09	25.43	27.70	29.85	31.81	33.54

Current [A]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	30.57	32.30	33.92	35.33	36.42	37.10	37.26	36.78
35	31.64	33.66	35.61	37.40	38.92	40.06	40.73	40.82
40	32.69	34.99	37.28	39.44	41.38	42.99	44.17	44.81
45	-	36.29	38.90	41.43	43.79	45.86	47.54	48.74
50	-	37.53	40.46	43.36	46.12	48.65	50.84	52.59
55	-	-	41.94	45.20	48.37	51.36	54.05	56.34
60	-	-	43.31	46.94	50.51	53.95	57.13	59.97

Mass flow [kg/s]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	661.01	837.56	1 041.91	1 281.35	1 563.20	1 894.76	2 283.32	2 736.19
35	639.29	815.38	1 018.60	1 256.24	1 535.61	1 864.01	2 248.74	2 697.11
40	616.24	791.56	993.32	1 228.84	1 505.41	1 830.34	2 210.92	2 654.47
45	-	766.17	966.16	1 199.24	1 472.69	1 793.82	2 169.94	2 608.34
50	-	739.30	937.20	1 167.51	1 437.52	1 754.54	2 125.88	2 558.82
55	-	-	906.52	1 133.75	1 400.00	1 712.59	2 078.82	2 505.98
60	-	-	874.20	1 098.02	1 360.20	1 668.04	2 028.84	2 449.91

C.O.P. [W/W]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	2.48	2.84	3.26	3.76	4.37	5.13	6.10	7.35
35	2.18	2.51	2.87	3.29	3.79	4.39	5.14	6.08
40	1.92	2.21	2.53	2.88	3.30	3.79	4.39	5.13
45	-	1.96	2.23	2.54	2.89	3.30	3.79	4.37
50	-	1.73	1.97	2.24	2.54	2.88	3.28	3.76
55	-	-	1.74	1.98	2.23	2.53	2.86	3.26
60	-	-	1.53	1.74	1.97	2.21	2.50	2.83

Type: Semi-hermetic piston compressors

Producer: Copeland

Series: DISCUS

Model: D6DH-3500

Technical data


Cylinder count:	6
Displacement [m³/h]:	106
Weight [kg]:	262
Oil charge [dm³]:	4,3
Max. operating current [A]:	63,5
Locked rotor current [A]:	284
Power supply [V/~/Hz]:	380-420V/3/50Hz

Connections


	milimeters	inches
Suction line:		2 1/8"
Discharge line:		1 3/8"

DWM Copeland Semi-hermetic Compressor D6DH-350 X,D6DH-3500

Standard equipment

oil pump
oil sight glass
Rotalock valves
thermal protections

Optional equipment

additional header cooling
oil pressure switch
crankcase heater
unload starting
capacity control

Application

high, medium and low temperatures
(R22 from 12,5 ºC to -50 ºC)
(R404A/R507 from 7 ºC to -50 ºC)
(R134a from 12,5 ºC to -20 ºC)
(R407A from 7 ºC to -45 ºC)

D6SF-200X Semi Hermetic Refrigeration Compressor R407 DWN Copeland For Big Cold Room
