Industrial Unit Cold Room Evaporator For Air Conditioning Compressor

Ask Lasest Price
Brand Name :	AUKS
Model Number :	AK502R/AK634C8 series
Certification :	CE, CCC, RoHS, UL
Price :	discussed
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	5,000pcs per month
Delivery Time :	7-10 working days after received your payment

Add to Cart

Product Details
Company Profile

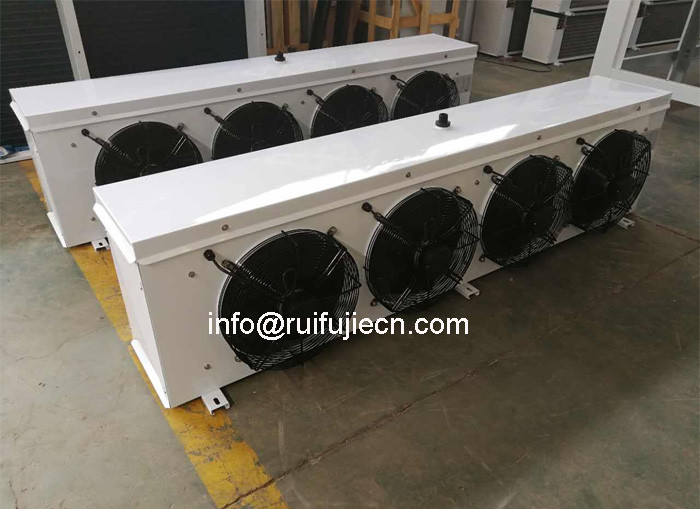

Industrial Unit Cold Room Evaporator For Air Conditioning Compressor

Industrial Unit Cold Room Evaporator For Air Conditioning Compressor

Refrigeration Evaportor HEATCRAFT AUKS air cooler

Specifications:

Evaporators are with axial fans,low-power,noiseless, high efficiency.

Bohn Evaporator:

1. Extended model and capacity range.Medium Temp range, 26 models , 1 ~ 5 fans, 1.6 ~ 24 kw.

Low Temp range, 22 models, 1 ~ 5 fans, 1 ~ 12 kw

2. Larger hanger bars with clawed feet are located in the cabinet.

3.New cabinet design features easy front opening access to electrical panel and a separate panel for refrigeration components .

4.The electrical board is front facing for easy access and the terminal board simplifies wiring.

5.Lanyards are included to hold the drain tray.

AK/KT series for medium temperature:

	Models	AK502R6	AK502R8	AK503R5	AK503R6	AK503R8	AK504R6	AK504R8
SC2 KW	Ta 0℃ R22	26.1	29.3	35.8	39.9	44.1	50	55.9
SC2 KW	Te -8℃ R404A	25.9	29.2	35.9	40.2	44	50.2	56.3
SC1 KW	Ta 10℃ R22	35.2	40.6	47.6	53.2	60.9	66.8	76.1
SC1 KW	Te 0℃ R404A	34.8	39.9	47.4	53	60	66.5	75.4
	Tube Length m	194	259	240	288	348	360	480
	Surface ㎡	105	140	130	156	208	195	260
	Circuit Vol. dm³	27	35	33	39	53	49	66
	Fan Mot.No.	2	2	3	3	3	4	4
	Air Flow m³/h	12400	11300	19200	18450	16900	23400	21400
	Air Throw m	16	15	17	17	16	18	17
	Fan Mot.Amper A	3	3	4.5	4.5	4.5	6	6
	Fan Mot.Power W	1260	1260	1890	1890	1890	2520	2520
	Electric Defrost A	13.6 Y	13.6 Y	22.6 △	22.6 △	22.6 △	28.4 △	28.4△
	Electric Defrost W	9000	9000	12900	12900	12900	16200	16200
	In Tube Inch.	5/8	7/8	7/8	7/8	1-1/8	1-1/8	1-1/8
	Out Tube Inch	1-3/8	1-5/8	1-5/8	1-5/8	2-1/8	2-1/8	2-1/8
	Net Weight kg	175	195	235	250	280	315	350
	Drawing No.	⑬	⑬	⑭	⑭	⑭	⑮	⑮


	630mm			Fin Spacing 4.5mm
	Models	AK632R6	AK632R8	AK633R6	AK633R8	AK634R8
SC2 KW	Ta 0℃ R22	41.6	47.8	63.2	72.5	86.4
SC2 KW	Te -8℃ R404A	41.7	47.9	63.8	73	86.1
SC1 KW	Ta 10℃ R22	57.5	67	87.4	102	122
SC1 KW	Te 0℃ R404A	57.1	66.3	87	101	120
	Tube Length m	288	384	432	576	691
	Surface ㎡	156	208	234	312	374
	Circuit Vol. dm³	39	53	59	79	95
	Fan Mot.No.	2	2	3	3	4
	Air Flow m³/h	24600	22500	36900	33750	42000
	Air Throw m	27	24	29	26	28
	Fan Mot.Amper A	6.4	6.4	9.6	9.6	12.8
	Fan Mot.Power W	3200	3200	4800	4800	6400
	Electric Defrost A	18.9△	28.4△	28.4△	42.6△	51.3△
	Electric Defrost W	10800	16200	16200	24300	29250
	In Tube Inch.	7/8	1-1/8	1-1/8	1-3/8	1-3/8
	Out Tube Inch	7/8	2-1/8	2-1/8	2-1/8	2-1/8
	Net Weight kg	245	285	330	400	495
	Drawing No.	⑯	⑯	⑰	⑰	⑱

	500mm			Fin Spacing 7mm
	Models	AK502C6	AK502C8	AK503C5	AK503C6	AK503C8	AK504C6	AK504C8
SC3 KW	Ta -18℃ R22	16	17.9	20.8	23.7	26.9	30	34.5
SC3 KW	Te -25℃ R404A	16.2	17.5	20.6	23.7	26.6	29.9	34.4
SC2 KW	Ta 0℃ R22	22.6	25.4	30.5	33.9	38.1	43.5	48.5
SC2 KW	Te -8℃ R404A	22.7	25.8	30.8	34.4	38.9	44	49.5
SC4 KW	Ta -25℃ R22	12.5	14	16.3	18.7	21.1	23.5	27.3
SC4 KW	Te -31℃ R404A	12.6	13.7	16.1	18.6	20.8	23.3	27.2
	Tube Length m	194	259	240	288	384	360	480
	Surface ㎡	70	94	87	104	139	130	174
	Circuit Vol. dm³	27	35	33	39	53	49	66
	Fan Mot.No.	2	2	3	3	3	4	4
	Air Flow m³/h	13000	12000	20100	19350	17950	25000	22800
	Air Throw m	17	16	18	18	17	19	18
	Fan Mot.Amper A	3	3	4.5	4.5	4.5	6	6
	Fan Mot.Power W	1260	1260	1890	1890	1890	2520	2520
	Electric Defrost A	13.6 Y	13.6 Y	22.6 △	22.6 △	22.6 △	28.4 △	28.4 △
	Electric Defrost W	9000	9000	12900	12900	12900	16200	16200
	In Tube Inch.	5/8	7/8	7/8	7/8	1-1/8	1-1/8	1-1/8
	Out Tube Inch	1-3/8	1-5/8	1-5/8	1-5/8	2-1/8	2-1/8	2-1/8
	Net Weight kg	177	197	238	253	283	320	355
	Drawing No.	⑬	⑬	⑭	⑭	⑭	⑮	⑮

	630mm			Fin Spacing 7mm
	Models	AK632C6	AK632C8	AK633C6	AK633C8	AK634C8
SC3 KW	Ta -18℃ R22	27.7	30.5	39.6	46.6	54.2
SC3 KW	Te -25℃ R404A	28.1	30.1	39.1	46.2	52.7
SC2 KW	Ta 0℃ R22	38.3	44.6	58.2	67.7	81.2
SC2 KW	Te -8℃ R404A	38.5	44.8	58.8	68.3	81
SC4 KW	Ta -25℃ R22	21.9	23.8	30.8	36.5	41.9
SC4 KW	Te -31℃ R404A	22.1	23.4	30.3	36	40.5
	Tube Length m	288	384	432	576	691
	Surface ㎡	104	139	156	209	250
	Circuit Vol. dm³	39	53	59	79	95
	Fan Mot.No.	2	2	3	3	4
	Air Flow m³/h	26100	24000	39150	36000	44700
	Air Throw m	29	27	31	29	31
	Fan Mot.Amper A	6.4	6.4	9.6	9.6	12.8
	Fan Mot.Power W	3200	3200	4800	4800	6400
	Electric Defrost A	18.9 △	28.4 △	28.4△	42.6 △	51.3 △
	Electric Defrost W	10800	16200	16200	24300	29250
	In Tube Inch.	7/8	1-1/8	1-1/8	1-3/8	1-3/8
	Out Tube Inch	1-5/8	2-1/8	2-1/8	2-1/8	2-1/8
	Net Weight kg	240	280	320	390	480
	Drawing No.	⑯	⑯	⑰	⑰	⑱
