Commercial Refrigeration Condensing Units 69NT40-511-318 3.6 Liters Oil Charge

Ask Lasest Price
Brand Name :	Carrier
Model Number :	69NT40-511-318
Certification :	CE
Price :	Discussed
Supply Ability :	1000 pieces a month
Delivery Time :	7-12 working days

Add to Cart

Product Details
Company Profile

Commercial Refrigeration Condensing Units 69NT40-511-318 3.6 Liters Oil Charge

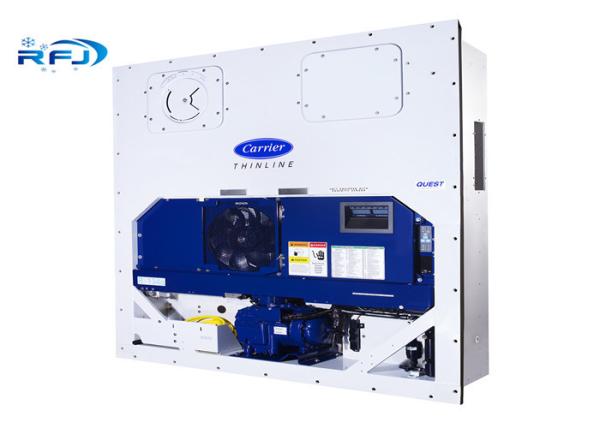

Carrier Transicold Container Refrigeration Units 69NT40-511-318

The unit is designed so that the majority of the components are accessible. The upper access panels allow entry into the evaporator section, and the center access panel allows access to the thermostatic expansion valve and evaporator coil heaters. The unit model number, serial number and parts identification number can be found on the serial plate to the left of the compressor.

ELECTRICAL DATA

Compressor Motor	Full Load Amps (FLA)	17.6 amps @ 460 vac (with current limiting set at 21 amps)
Condenser Fan Motor		380 vac, Single Phase,50 hz	460 vac, Single Phase,60hz
	Full Load Amps	1.3 amps	1.6 amps
	Horse Power	0.43hp	0.75hp
	Rotations Per Minute	1425 rpm	1725 rpm
	Voltage and Frequency	360 - 460 vac ± 2.5 hz	400 - 500 vac ¦± 2.5 hz
	Bearing Lubrication	Factory lubricated, additional grease not required.
	Rotation	Counter-clockwise when viewed from shaft end.
Drain Pan Heaters	Number of Heaters	0 or 1
	Rating	750 watts +5 / - 10 % @ 460 vac
	Resistance (cold)	285 ± 7.5% ohms @ 20 _C (68 _F)
	Type	Sheath
Evaporator Coil Heaters	Number of Heaters	4 or 6
	Rating	750 watts +5/ - 10% each @ 230 vac
	Resistance (cold)	66.8 to 77.2 ohms @ 20 _C (68 _F)
	Type	Sheath
Evaporator Fan Motor		380 vac/50 hz	460 vac/50 hz
	Full Load Amps High Speed	1.6	2
	Full Load Amps Low Speed	0.8	1
	Nominal Horsepower High Speed	0.7	0.84
	Nominal Horsepower Low Speed	0.09	0.11
	Rotations Per Minute High Speed	2850 rpm	3450 rpm
	Rotations Per Minute Low Speed	1425 rpm	1750 rpm
	Voltage and Frequency	360 - 460 vac ± 1.25 hz	400 - 500 vac ± 1.5 hz
	Voltage & Frequency using power autotransformer	180 - 230 vac ± 1.25hz	200 - 250 vac ± 1.5 hz
	Bearing Lubrication	Factory lubricated, additional grease not required
	Rotation	CW when viewed from shaft end

F&Q

1. Where is your company?

we are located in Shenzhen, Guangdong Province, near to Hong Kong, very convenient for shipping.

2. How about the MOQ?

1 unit is ok.

3. Shipping methods and lead time?

By Express: 5-7 working days to your door (DHL, UPS, TNT, FedEx...).

By Air: 7-10 working days to your airport.

By Sea: Pls advise your port of destination, the exact days will be confirmed by our forwarders, and the following lead time is for your reference.

Europe and America (25 - 35 days), Asia (3-7 days), Australia ( 16-23 days).

Our main compressor lines are :
· compressors,

Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES

Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES

· performer compressors: SM, SZ, SH SERIES

· commercial compressors: FR, SC SERIES

· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES

Secop compressor, Carrier(Carlyle) compressor

Hitachi compressor,Daikin compressor, Sanyo compressor

Tecumseh compressor, LG compressor, Mitsubishi compressor,

Toshiba compressor, Panasonic compressor, Embraci Aspera compressor

Also , , Carel, Dixell original valves, controls and selected parts

· TE, TDE, TGE, PHT SERIES TERMOSTATIC EXPANSION VALVES

· ETS SERIES EXPANSION VAVLES,
· EVR SERIES ECPANSION VAVLES AND

· KP1,KP5,KP15 SERIES PRESSURE CONTROLS

· DCL DML LIQUID LINE FILTER DRIERS
