Copeland R407c Zh40kve-Twd Refrigeration Scroll Compressor

    Buy cheap Copeland R407c Zh40kve-Twd Refrigeration Scroll Compressor from wholesalers

    Buy cheap Copeland R407c Zh40kve-Twd Refrigeration Scroll Compressor from wholesalers
    • Buy cheap Copeland R407c Zh40kve-Twd Refrigeration Scroll Compressor from wholesalers

    Copeland R407c Zh40kve-Twd Refrigeration Scroll Compressor

    Ask Lasest Price
    Brand Name : copeland
    Model Number : Zh40kve-Twd
    Certification : CE
    Price : community
    Payment Terms : T/T, Western Union
    Supply Ability : 10000pcs /week
    Delivery Time : 5-8 days after payment
    • Product Details
    • Company Profile

    Copeland R407c Zh40kve-Twd Refrigeration Scroll Compressor

    R407c Copeland Scroll Compressor Fro Heat Pump Zh40kve-Twd with Best Price


    1, Product Description:


    Type: Hermetic scroll compressors
    Producer: Copeland
    Series: ZH

    Model: ZH40KVE-TWD

    Technical data
    Displacement [m³/h]:35,5
    Sound power [dBA]:83
    Sound power with sound shell [dBA]:73
    Sound pressure level [dB]:72
    Net Weight [kg]:103
    Gross Weight [kg]:110
    Oil charge [dm³]:4,1
    Maximum high pressure [bar]:32
    Maximum standstill pressure [bar]:22,6
    Minimal lowside temperature [°C]:-35
    Maximum lowside temperature [°C]:50
    PED category:2

    Electrical data
    Power supply [V/~/Hz]:380-420V/3/50Hz
    Locked rotor current [A]:167
    Max. operating current [A]:26,7
    Winding resistance ]:0,8

    Connections
    inches
    Suction connection with supplied sleeve:1 3/8"
    Discharge connection with supplied sleeve:7/8"

    2.Features
    Copeland Scroll axial and radial compliance for high reliability
    High efficiency and increased heating capacity
    High water temperature for all applications
    Low sound and low vibration level
    Tandem combination for superior seasonal efficiency

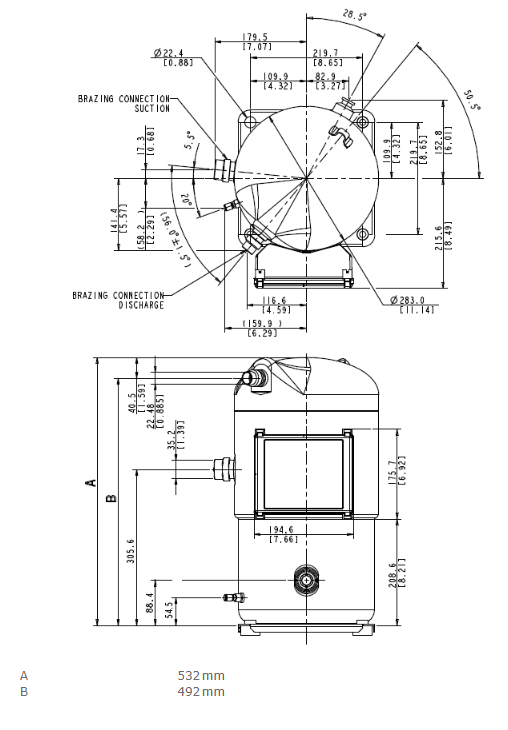

    3.Drawings



    ZH12K4E to ZH45K4E,ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582,ZH04K1P to ZH19K1P , etc.
    1,refrigerant: R134a,R407C,R410a
    2,Quiet Operation- ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.High efficiency,Low price

    3.High Efficiency

    ZH heating compressors with Enhanced Vapor Injection have
    been further optimized to ensure best-in-class performances
    in dedicated heating applications. This technology allows
    replacement of traditional boilers in new building and retrofit
    applications, without the need of substituting existing heating
    elements in the building.ZH Copeland Scroll heating compressors with Enhanced Vapor
    Injection have an additional port to inject vapor within the
    compression process. This improves system performances
    by increasing the heating capacity for a given compressor
    displacement. Additional benefits are the reduction of the gas

    4, Our main compressor lines are :

    · compressors,

    · Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES

    · Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES

    · performer compressors: SM, SZ, SH SERIES

    · commercial compressors: FR, SC SERIES

    · Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES

    · Secop compressor, Carrier(Carlyle) compressor

    · Hitachi compressor,Daikin compressor, Sanyo compressor

    ·Tecumseh compressor, LG compressor, Mitsubishi compressor,

    ·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
