Hermetic Copeland Scroll Compressor ZRD42KC-PFJ-532 R22 For Condensing Unit

Ask Lasest Price
Brand Name :	Copeland
Model Number :	ZRD42KC-PFJ-532
Certification :	CE
Price :	Discussed
Payment Terms :	T/T, Western Union
Supply Ability :	1000000 pieces/ year
Delivery Time :	5-7 working days
MOQ :	1 piece

Add to Cart

Product Details
Company Profile

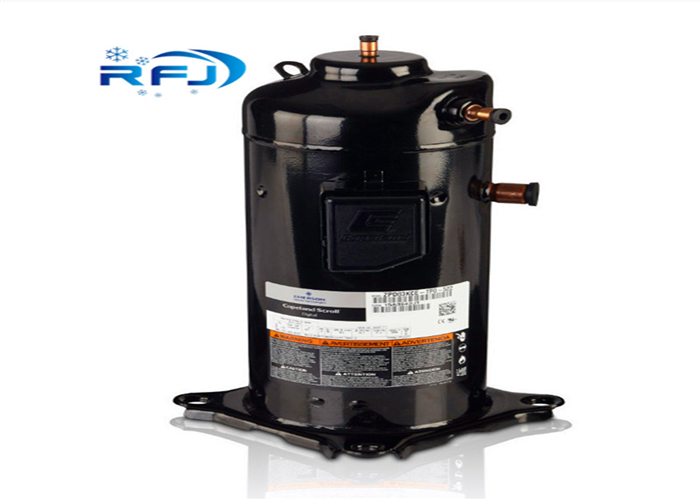

Hermetic Copeland Scroll Compressor ZRD42KC-PFJ-532 R22 For Condensing Unit

Hermetic Scroll Digital Compressor ZRD42KC-PFJ-532 for Condensing Unit

How does it work?

The digital scroll compressor unloads by taking advantage of the Copeland Scroll compressor''s axial compliance. All Copeland Scroll compressors are designed so that the compression elements can separate axially a few thousands of an inch. The ZPD34-ZPD54K5, ZPD61-ZPD83KC, ZPD91KC, ZPD104KCE, ZPD122KCE, and ZRD36-81KC compressors described in this bulletin use a lift piston mechanism to separate the scrolls during the unloaded state. When the solenoid is energized the volume on top of the piston is vented to the low side allowing the piston and fixed scroll assembly to move axial away from the orbiting scroll. When the solenoid is de-energized the piston is forced down and the scrolls are loaded axially. The ZPD103KC, ZPD120KC, ZPD137-182KC and ZRD94-125KC digital scroll compressors employ a solenoid valve that is mounted on the side of the compressor that vents the intermediate cavity to the low side of the compressor during the unloaded state.

Product name	Copeland digital scroll compressor
Model	ZRD42KC-PFJ-532
Brand	Copeland
Application	HVAC
MOQ	1 piece
