    06EA250600 Semi-Hermetic Compressors R410A Refrigeration Compressor with 4 Cylinders

    Ask Lasest Price
    Brand Name : Carlyle
    Model Number : 06EA250600
    Certification : /
    Price : Discussed
    Payment Terms : T/T, Western Union
    Supply Ability : 100PC
    Delivery Time : 1 MONTH
    MOQ : 1 PC
    • Product Details
    • Company Profile

    06EA250600 Semi-Hermetic Compressors R410A Refrigeration Compressor with 4 Cylinders

    06EA250600 Semi-Hermetic Compressors Refrigeration Compressor R410A R134a 400/460V-3PH-50/60Hz Descrition


    1. Product Specification


    Brand


    Carlyle Compressor

    Model


    06EA250600
    RefrigerantR134A R410A
    Power source400/460V-3PH-50/60Hz
    MOQ1

    2.Product feature


    High Efficiency Valving System

    The valving system utilizes low lift valves and high flow ports to reduce valve losses, maximize efficiency, and reduce valve
    stress. Carlyle’s valves are made of Swedish steel, the finest material available for this application.
    Contoured Pistons and Vented Connecting Rods
    The pistons are contoured allowing the suction valves to mate up with the recess in the pistons, resulting in reduced clear
    ances which increases both capacity and efficiency. The connecting rods are also vented to provide premium bearing lubrication
    and longer life.
    Automatic Reversible High Flow Oil Pump
    The positive displacement vane type oil pump is extremely durable and produces a high volume of oil flow. With the new
    HFC refrigerants and POE (polyolester) oils (which are more soluble), the 06D/E oil pump will produce oil pressure quickly,
    reducing the potential for nuisance oil pressure trips.
    Oversize Oil Sump
    On start-up, oil level can temporarily drop too low, causing unnecessary wear in other compressor designs because on shut
    down, the oil is diluted by refrigerant. The Carlyle oversize oil sump holds extra oil in crankcase to prevent normal oil migration
    from dropping the oil level below the safe lubrication range.
    High Efficiency Heavy Duty Motors
    These motors have the latest insulation systems which helps to prevent motor burnouts, especially during hot weather
    periods, when operating pressures, temperatures, and currents (amps) are high.

    3. Production details


    Company Information

    Shenzhen Ruifujie Technology Co., Ltd. has a history of more than 20 years. It is a large-scale modern enterprise specializing in R&D, production and sales of refrigeration products. The company has great advantages in the trading of compressors and refrigeration accessories, and has close cooperation with major compressor manufacturers around the world.


    The company develops and produces scroll, piston and screw compressor are exported to all over the world. We have strong technical strength and experience in cold storage, freezing, quick freezing, and flake ice machine, block ice machine production and sales. In recent years, the company has been in the Belt and Road. Under the advocacy of the project, we constantly tackled difficulties in overseas markets, developed rapidly, and built a number of engineering projects with modern significance.


    The company has achieved breakthrough development in after-sales service, design, installation, maintenance and technical consulting, and has established long-term close cooperation with many countries around the world.


    Based on the tenet of “Devotion, Integrity, Innovation, Dedication, We will continue to provide Highest quality products for new and old customers.

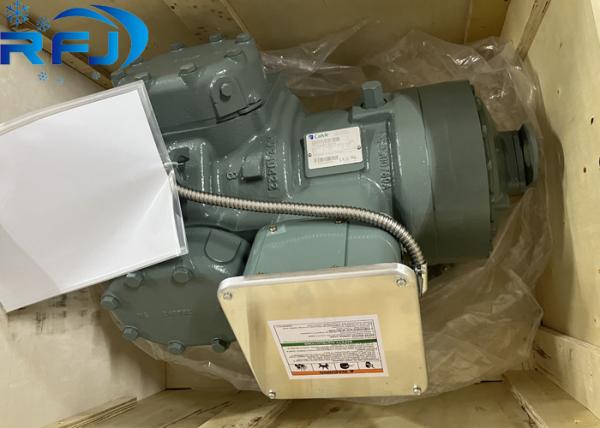

    Packaging & Shipping



    4.Product qualification


    Certificate, certification, patent certificate:

    1)."Quality Management System Certification"

    2)."Shenzhen Science and Technology Enterprise Certification"

    3)."Refrigeration Equipment Air Conditioning Maintenance and Installation Enterprise Qualification Certificate"


    5.FAQ

    Q: Can we use our own logo?
    A: Yes, we can print your private logo according to your request.

    Q:What is the packaging and shipping method?
    A:By Sea: Export wooden package,with refrigerant oil.
    By Air: Full-sealed wooden package, without refrigerant oil.


    Q:Which port does you ship from?

    A:Guangzhou/Shenzhen.

    Q: When can I get the price?
    A: Usually we quote within 8 hours after we get your inquiry.

    Q: What's your MOQ?
    A: If we have the products in stock, it will be no MOQ. If we need to produce,
    we can discuss the MOQ according to customer's exact situation.

    Q: What is your term of payment?
    A: 30% down payment before producing and 70% balance payment before shipping.

    Q:What is the term of payment?
    A:T/T, Western Union.
